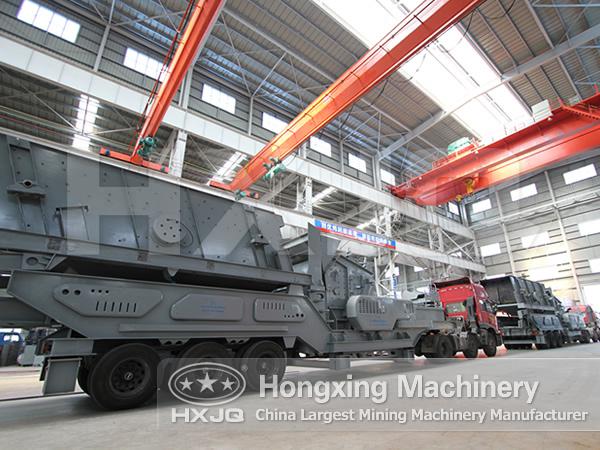

Mobile Crushing Station
The mobile crushing station is designed by our factory aiming at eliminating the obstacles in the crushing environment.
The mobile crushing station is designed by our factory aiming at eliminating the obstacles in the crushing environment. It is a new rock crushing machine. It is the best choice for the users because the mobile crushing station is low cost and highly efficient. It is is widely used in mine, building material, highway, rail way and hydropower industries, etc. The crushing and screening process can be finished at one time to produce the required size. It could crush hard and meduim hard stone, ore and construction wastes.
1. PE Series high-performance crusher
2. Feeder and vibrating screen are all in one.
3. Turn axle of traction is convenient for road transit and expanding the working place.
4. Belt conveyor under screen, vibrating screen, crusher installation of an integrated on-board
5. Vehicle installation supporting is easier for equipment to station in the working place.
6. Vehicle electric generating set, motors and control box are all included.
.jpg)
1. Mobility: short distance between shafts, small radius of turning circle, and the ability of moving flexibly on the ordinary roads and inside operation area.
2. Reducing the cost of material transportation: the mobile crushing plant can do field processing without moving materials away from the operation site, which greatly reduces the transportation cost of materials.
3. Direct operation effect: the integrative series of the mobile crushing plant can be used independently and flexible process configuration is also provided to customers according to different materials and product requirement.
4. Flexible combination and good adaptability: various combinations can realize independent operation and great flexibility.
5. The integrative set of equipment: the integrative set installation pattern avoids the installing steps of the infrastructure of the divided parts of the whole set in complex field, thus reducing both materials and working hours. The rational and compact spatial arrangement of the whole set increases the flexibility of the site residence.

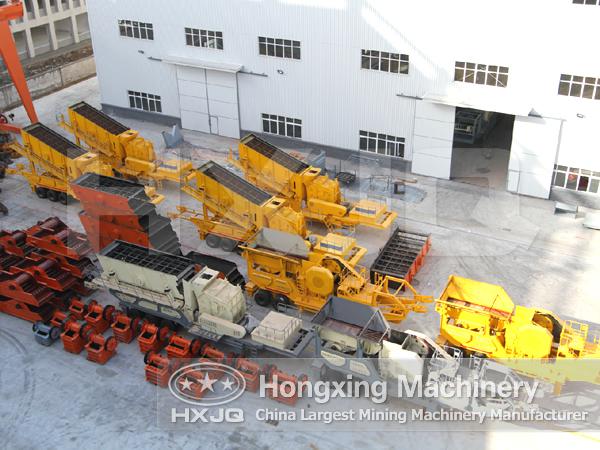

The mobile stone crusher is composed of primary crushing, screening station, secondary one and belt conveyor. Every crushing station is an independent working unit which can respectively assume their different responsibility, and the belt conveyer is responsible for material transmitting and piling up between each crushing station.
|
HX938E69
|
HX1149E710
|
HX1349E912
|
HX1349EW86
|
HX1349EW110
|
|
|
Transportation Length
(mm0 |
12600
|
13500
|
15500
|
14600
|
15500
|
|
|
Transportation Width
(mm) |
2550
|
2550
|
2950
|
2550
|
2950
|
|
|
Transportation Height
(mm) |
3870
|
4500
|
4500
|
4500
|
4500
|
|
|
Maximum Width
(mm) |
12500
|
14000
|
14600
|
14600
|
15500
|
|
|
Maximum Width
(mm) |
2900
|
2950
|
3300
|
3300
|
3300
|
|
|
Maximum Height
(mm) |
4100
|
4900
|
5300
|
5300
|
5700
|
|
|
Weight
(t) |
39
|
57
|
83
|
65
|
92
|
|
|
Tire Configuration
|
Dualaxial
|
Triaxial
|
Triaxial
|
Triaxial
|
Triaxial
|
|
|
Jaw Crusher
|
PE600×900
|
PE750×1060
|
PE900×1200
|
PEW860
|
PEW1100
|
|
|
Maximum Feeding Size
(mm) |
480
|
630
|
750
|
730
|
940
|
|
|
Adjustment Range of Discharging Mouth
(mm) |
65-160
|
80-140
|
100-200
|
75-225
|
150-275
|
|
|
Capacity
(t/h) |
90-180
|
110-320
|
220-450
|
150-500
|
300-650
|
|
|
Vibrating Feeder
|
ZSW380×95
|
ZSW420×110
|
ZSW490×130
|
ZSW490×130
|
ZSW490×130
|
|
|
Main Belt Conveyor
|
B800×8.5M
|
B1000×9.5M
|
B1200×10.5M
|
B1200×9.5M
|
B1200×9.5M
|
|
|
Side-opening Belt Conveyor(Optional)
|
B500×3M
|
B650×4.5M
|
B650×4.5M
|
B650×4M
|
B650×4M
|
|
|
Genset(Optional)
(kw) |
200
|
250
|
270
|
320
|
400
|
|
|
Iron Separator (Optiona)
|
RCYD(C)-8
|
RCYD(C)-10
|
RCYD(C)-12
|
RCYD(C)-12
|
RCYD(C)-12
|
