The sand maker, also known as sand making machine, artificial sand maker or vsi sand maker, is applied to crush and reform soft, medium hard and extra-hard materials.
Get Quote Get More Help

FEATURES

Introduction to Sand Maker

The sand maker, also known as sand making machine, artificial sand maker or vsi sand maker, is applied to crush and reform soft, medium hard and extra-hard materials, is widely used to process materials like minerals, cement, refractory matter, bauxite clinker, emery, glass raw materials, machine-made building stone materials and gold slag, and the sand maker has much higher production and efficiency than other crushers when processing carborundum, emery, firing bauxite clinker and magnesia extra-hard, ultra-hard and abradability resistance materials.

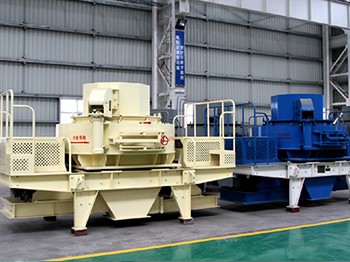

Sand Maker

Application Felds of Sand Making Machine

1. Sandstone plant, concrete batching plant, premixed dry mortar, power plant desulfurization, quartz sand, etc.

2. The artificial sand making and stone reshaping in the engineering field of water conservancy and hydropower, high-grade road, expressway, high speed railway, passenger transport line, bridge, air strip, municipal works, high-rise buildings.

Structure of Sand Making Machine

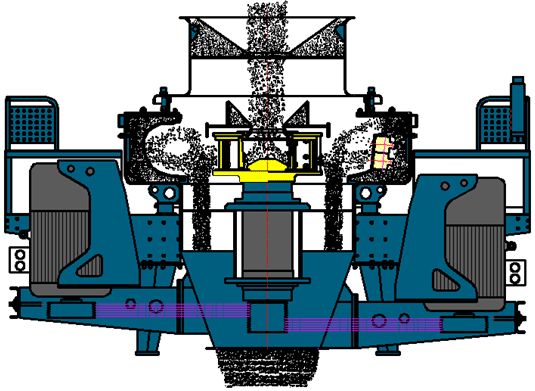

It consists of feeding hopper, distributor, crushing chamber, impeller, spindle assembly, base plate, transmission part and motor.

VSI sand maker provides high quality sand aggregate for expressway, high speed railway, high-rise building, municipal works, and the construction of hydroelectric dams. It is the first choice for artificial sand making and the stone reshaping.

Artificial Sand Making Production Line

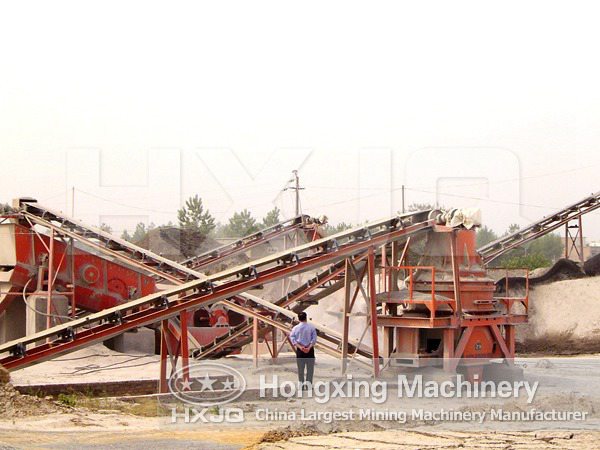

The stone materials are crushed preliminary in the jaw crusher. Secondly, the crushed rough stone materials are transported into the impact crusher for further crushing by the belt conveyor. Thirdly, the stone materials are separated into two parts by the vibrating screen. The part whose size is suitable for the sand making machine will be transported into the sand making machine and the other part will be transported into the impact crusher. Some of the former part of the stones which are crushed in the sand making machine will turn into required sand and be washed by the sand washing machine (selective), and the rest stone materials will be transported into the impact crusher to be crushed once more.

Artificial sand washer production line has features of high automation, low operating costs, high crushing ratio, low energy consumption, large output, easy maintenance, uniform granularity and good shape of the products, reasonable gradation and the produced sand conforms to the national standard of construction sand.

Characteristics of VSI Sand Maker

VSI Sand Maker

1. High capacity, high productivity--50-500t/h, the output is 30% higher than that of the traditional sand maker under the same power.

2. Low consumption of wearable parts--- best design of crushing chamber to make it have little friction with the wearable parts, 30% lower running cost compared with traditional equipments, reducing the cost directly.

3. Excellent shape of final products--- cubic products shape, good granularity, reasonable grading, adjustable fineness modulus, especially suitable for artificial sand making and stone reshaping. The practice has shown that the effect of this series sand maker can improve 30% output in the process of sand making and stone reshaping than the traditional equipment.

4. Easy installation and maintenance --- light weight, various installation ways, movable installation; the installation, repair and maintenance are easy, the operation is easy.

Working Principle Of Sand Maker

After entering the VSI sand maker, materials are divided into two parts by the distributor. Some enter the high speed spinning impeller through the middle part of the distributor, get speeded up with the accelerated speed of hundred times of gravitational acceleration and thrown out of the three runners evenly spread in the impeller at the speed of 60-70m/s. Then some materials falling around the distributor are crushed and impact into the vortex motion cavity, get rebounded by the material lining, get impact inclined up to the top of the vortex motion cavity, then change the direction of motion and finally form the continuous material curtain with materials launched from the impeller runner. Therefore, materials will suffer two or more times of impact, grinding and crushing in the vortex motion crushing cavity. The crushed materials are discharged from the discharge gate in the bottom.

PARAMETER

Technical Parameters Of Sand Maker

Specification Max.feeding size
(mm)
Power
(kw)
Rotation speed of impeller
(r/min)
Capacity
(t/h)
Dimensions(L×W×H)
(mm)
Total weight
(kg)
HX-06 35 37-55 2000-3000 12-30 2500×1620×2600 5600
HX-07 45 55-75 1500-2500 25-55 2700×1760×2800 7600
HX-09 50 110-150 1200-2000 55-100 3900×2000×3070 12600
HX-10 60 150-180 1000-1700 100-160 4600×2350×3450 17300
HX-12 60 264-320 850-1450 160-300 4500×2400×3700 22500
HX-13 60 320-400 800-1193 200-360 5200×2700×3800 27600

Model HXVSl-7611 HXVSl-8518 HXVSl-9526 HXVSl-1140
Capacity(t/h) Feedboth at center and at sides 120-180 200-260 300-380 450-520
Feed at center 60-90 100-130 150-190 225-260
Max.Feeding size(mm) Soft material 35 40 45 50
Hard material 30 35 40 45
Rotation speed(r/min) 1700-1890 1520-1690 1360-1510 1180-1310
Double motor power(kw) 110 180 264 400
Overall dimension(L×W×H)(mm) 3700×1250×2100 4140×2280×2425 4560×2447×2778 5000×2700×3300
Total weight(t) 11.8 14.5 17.8 25.6
Power supply 380V 50HZ
Vibrating sensor The detection range can be continuously adjusted in the range of 0.1-20mm/s.
Lubrication and hydraulic station Double motor power 2×0.31kw
Safety assuance Double oil pumps ensure oil supply; automatic stoppage with no oil stream or oil pressure; temperature reduction with water cooling; the motor is started after being heated in winter.
Overall dimension(L×W×H)(mm) 820×520×1270
Power of oil tank heater 2KW
